Product Overview
The **TP‑Link EAP225‑Outdoor** delivers AC1200 (300 Mbps @2.4 GHz + 867 Mbps @5 GHz) performance in a durable IP‑rated housing. Featuring Wave 2 MU‑MIMO, beamforming, and Omada Mesh, it provides seamless roaming and long-range coverage up to 200–300 m.
Main Features
- Supports up to **1200 Mbps** Wi‑Fi with 2×2 MU‑MIMO technology
- Dual-band 2.4 GHz/5 GHz operation: 300 Mbps and 867 Mbps respectively with beamforming and band steering

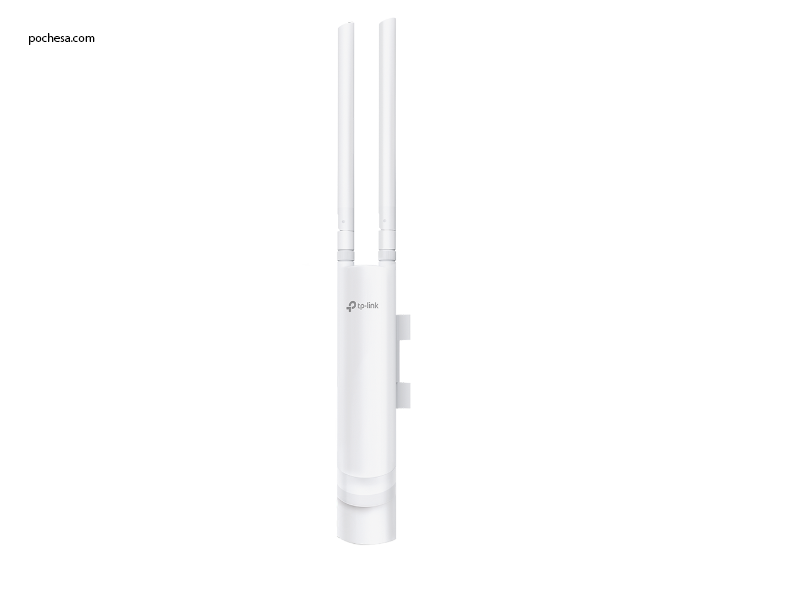

- Integrated high-power omni antennas and robust outdoor enclosure for extended coverage
- Mesh support for wireless daisy‑chain deployment and seamless roaming via 802.11k/v
- 802.3af or passive PoE (adapter included); Gigabit Ethernet port for backhaul connectivity
- Omada SDN cloud-centralized management, guest portal, SSID/VLAN mapping and captive portal auth
Specifications at a Glance
| Wireless Speeds | 2.4 GHz: up to 300 Mbps; 5 GHz: up to 867 Mbps |
|---|---|
| Antenna | Integrated outdoor omni; high-power |
| PoE In | 802.3af or passive PoE (24 V adapter included) |

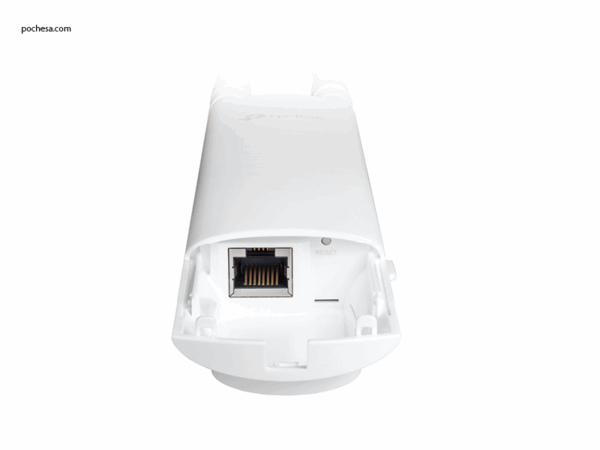

| Ethernet | 1× Gigabit RJ45 |
| Mesh & Roaming | Supported: Omada Mesh, 802.11k/v seamless roaming |
| Supported Clients | 100+ per AP across up to 8 SSIDs |
| Power Consumption | ≈ 9.7 – 12.6 W depending on region |
| Mounting | Pole/ceiling mount kit included |
| Operating Range | 2.4GHz: ≈200 m; 5GHz: ≈300 m (clear line-of-sight) |
| Operating Temperature / Rating | −40 °C to 60 °C; IP65-rated enclosure |
| Features | Beamforming, Band Steering, Airtime Fairness, MU‑MIMO, Captive Portal |
