Product Overview

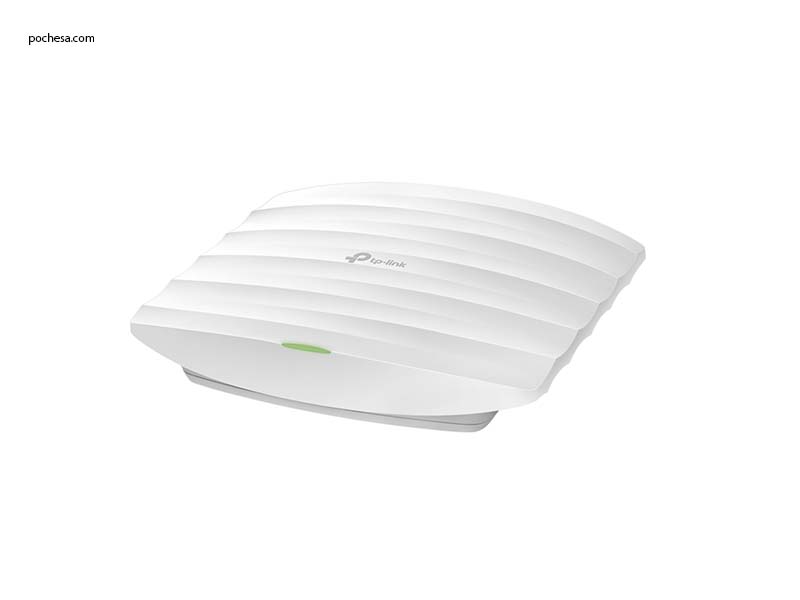

The TP‑Link EAP110 offers cost-effective, easy-to-install indoor wireless coverage ideal for hotels, schools, cafés, or offices. Featuring IEEE 802.11b/g/n support up to 300 Mbps, dual‑4 dBi omni antennas, and a single 10/100 Mb/s port with passive PoE, it’s managed via Omada SDN controllers for streamlined deployment.
Main Features
- 300 Mbps 2.4 GHz Wi‑Fi N (802.11n/g/b) with dual internal 4 dBi omni antennas for wide indoor coverage citeturn0search0turn0search1
- Support for up to 100+ concurrent clients and up to 8 SSIDs per AP citeturn0search0turn0search1
- Easy ceiling or wall mounting with included mount kit; blends into interior décor cite turn0search1 turn0search6
- Powered by PoE only: comes with 24 V passive PoE adapter (no active PoE support) citeturn0search1 turn0search5
- Omada SDN central management: cloud control, guest portal, scheduling & load balancing via Omada App or controller cite turn 0 search 1 turn 0 search 3
- Extremely low power draw (~2.8 W), compact dimensions (<190 × 170 × 30 mm) cite turn 0 search7 turn 0search 0
Specifications at a Glance
| Wireless | 2.4 GHz 802.11n/g/b, up to 300 Mbps |
|---|---|
| Antenna | 2 × internal omni, 4 dBi each |
| Ethernet | 1 × 10/100 Base‑T RJ45 (PoE‑in only) |
| PoE | 24 V passive PoE (adapter included); no 48 V support |
| Power Consumption | ≈ 2.8 W |
| Clients / SSIDs | 100+ clients; up to 8 SSIDs |
| Management | Omada SDN (local, hardware, or cloud controller) |
| Mounting | Ceiling or wall mount kit included |
| Dimensions | 189.5 × 170.5 × 29.7 mm |
| Operating Temp | 0 °C–40 °C |
| Certifications | CE, FCC, RoHS |
