Product Overview

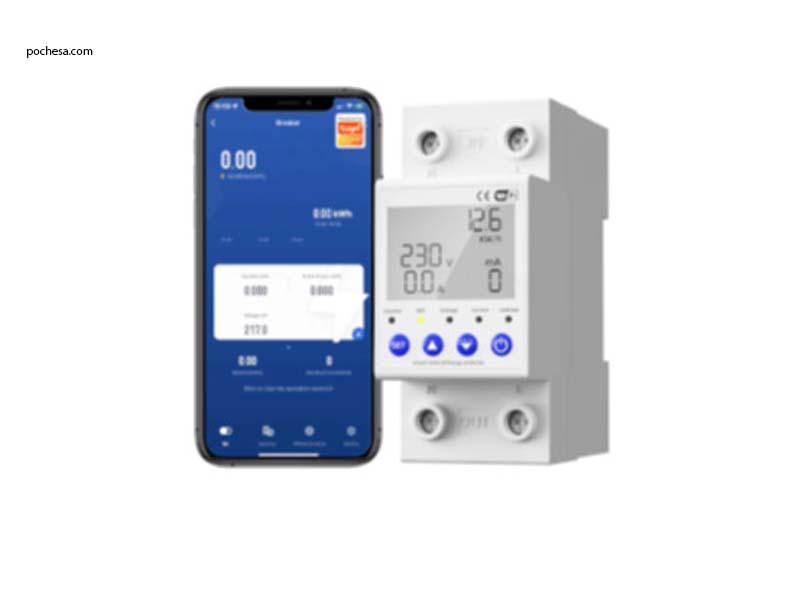

The Lentric 63A Wi‑Fi Smart Switch** combines smart protection and energy monitoring in one DIN-rail breaker. With 63 A/80 A capacity, it features Earth leakage, over/under-voltage, and over-current protection—all controllable via the Tuya Smart or Smart Life app. Perfect for smart homes needing real-time kWh metering, remote scheduling, voice control, and safety automation.
Main Features
- 63 A (or 80 A) rated circuit breaker with adjustable over-current limits (1–63 A) :contentReference[oaicite:1]{index=1}
- Metering: voltage, current, real-time power, and cumulative kWh displayed and logged :contentReference[oaicite:2]{index=2}
- Adjustable protection thresholds: over/under-voltage (140–300 V), leakage (10–99 mA), countdown timer resets and fault auto-trips :contentReference[oaicite:3]{index=3}
- Tuya Wi‑Fi connectivity (2.4 GHz) with remote control, scheduling and timer support :contentReference[oaicite:4]{index=4}
- Voice control via Alexa & Google Home)
- Real-time display via LED/LCD and app monitoring
Specifications at a Glance
| Rated Current | 63 A (or 80 A variant) |
|---|---|
| Voltage Range | 85–300 VAC (adjustable trip points) |
| Over/Under Voltage | Under: 140–210 V; Over: 230–300 V |
| Leakage Detection | 10–99 mA adjustable RCD protection |
| Wi‑Fi | 2.4 GHz Tuya Smart / Smart Life app |
| Monitoring | Voltage, Current, Power (W), Energy (kWh) |
| Protection Functions | Over-current, leakage, over/under-voltage, timer reset |
| Control Methods | App, schedule, voice control (Alexa/Google) |
| Mounting | DIN rail (breaker form factor) |
| Dimensions | Standard DIN width (2–3 modules) |
| Certifications | Smart circuit breaker, UNBRANDED/Tuya module |
