Product Overview

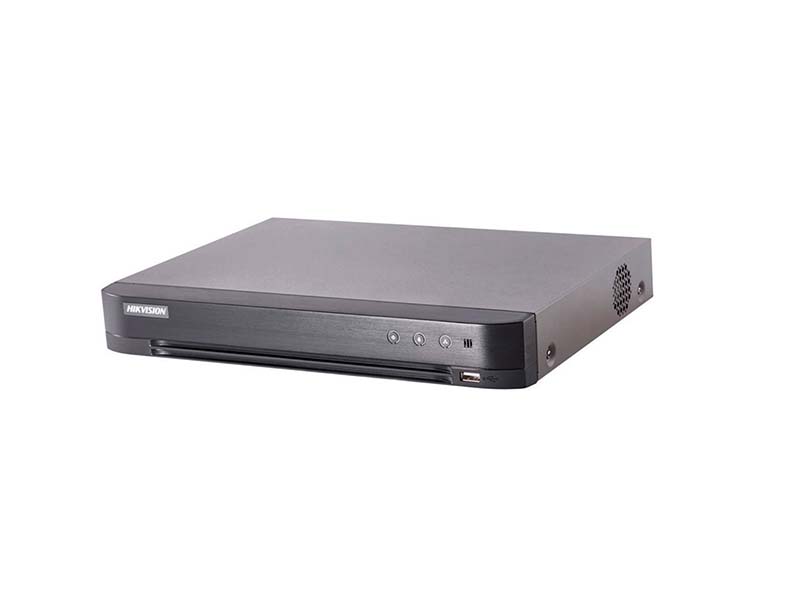

The Hikvision DS‑7204HQHI‑K2 is a versatile 1U Turbo HD DVR supporting up to 4 analog Turbo HD cameras and 4 IP cameras (in enhanced mode). It utilizes H.265 Pro+ compression for reduced storage use, provides Power over Coax (PoC) for simplified installation, and delivers smart video analytics like line crossing and intrusion detection.
Main Features
- 4 analog + up to 4 IP channels (up to 6 MP)
- H.265 Pro+/H.265/H.264+/H.264 encoding formats
- Supports full-channel recording up to 4 MP Lite, 1080p real-time
- Long-distance coax transmission (800 m @1080p / 1200 m @720p)
- 4K HDMI and 1080p VGA output for crisp monitoring
- Power over Coax (PoC) support for compatible cameras
- Smart VCA analytics: line crossing & intrusion detection on analog channels
- Storage via 1 × SATA (up to 10 TB) and smart search playback
- Remote management: Hik‑Connect, ONVIF, DDNS, UPnP, iSCSI, HTTPS
Specifications
| Analog Channels | 4 BNC (HD‑TVI/AHD/CVI/CVBS) |
|---|---|
| IP Channels | Up to 4 (up to 6 MP each) |
| Compression | H.265 Pro+/H.265/H.264+/H.264 |
| Recording Resolution | 4 MP Lite / 1080p / 720p / SD |
| PoC Support | Yes — simplifies wiring |
| HDMI Output | Up to 4 K (3840×2160) |
| VGA Output | Up to 1080p |
| SATA Bay | 1 × up to 10 TB |
| Coax Distance | 1080p: 800 m; 720p: 1200 m |
| Analytics | Line crossing & intrusion detection |
| Network | RJ45 10/100 Mbps; Hik‑Connect, ONVIF, DDNS, iSCSI, HTTPS |
