Product Overview

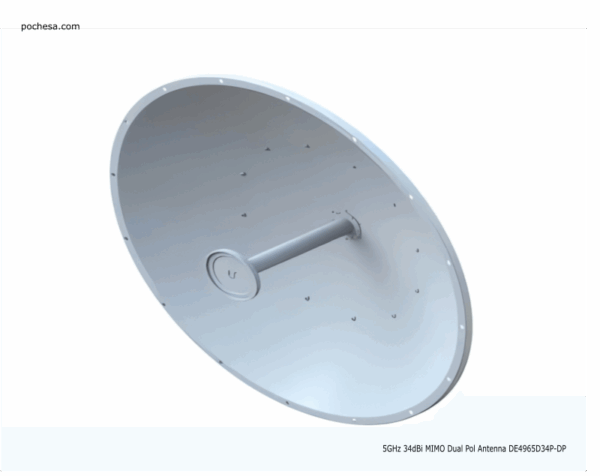

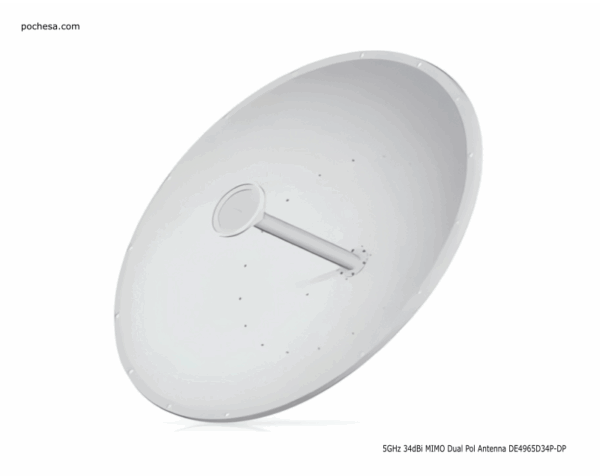

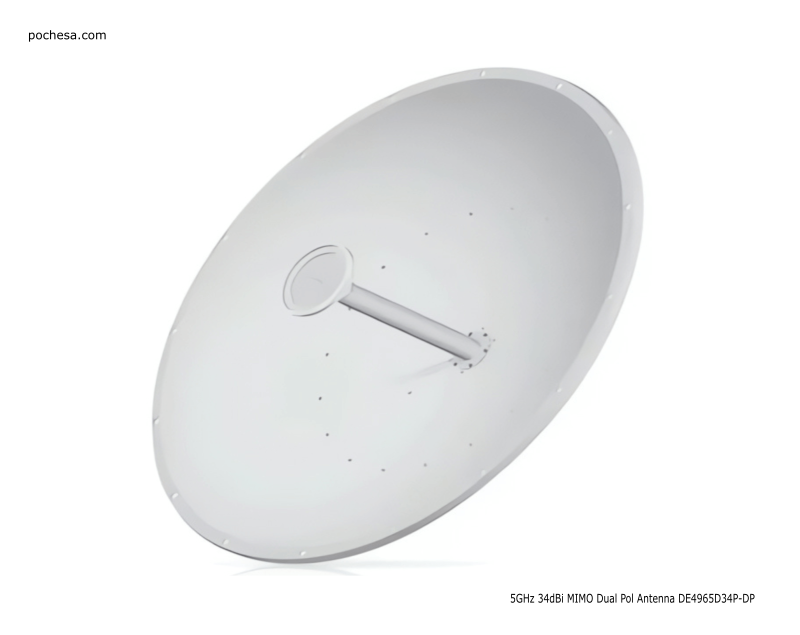

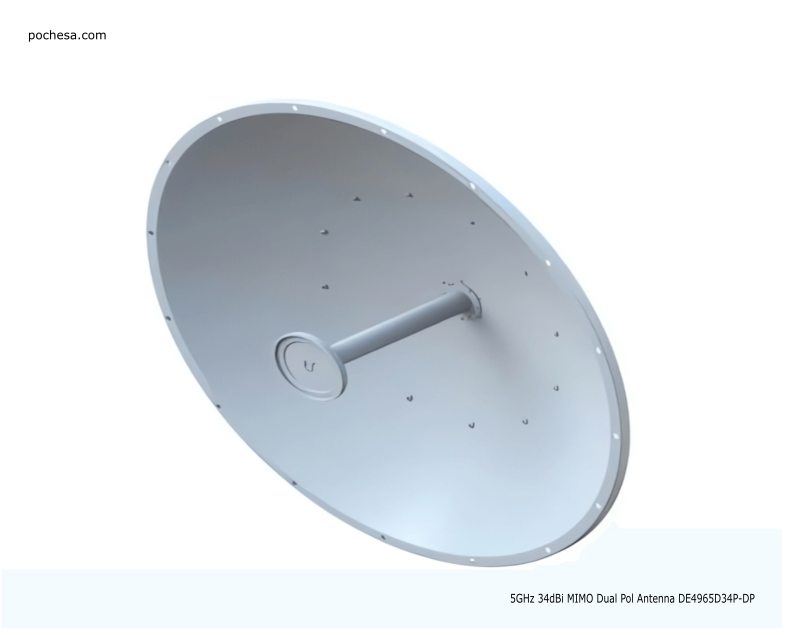

The DE4965D34P‑DP is a high-gain 5 GHz MIMO dish antenna featuring dual‑slant polarization, designed for maximum throughput and noise-rejection. Built for wireless network backhaul, it supports up to four spatial streams with >34 dBi gain and precise beam control.
Main Features
- 34 dBi gain across 4.9–6.5 GHz (31.5–34 dBi by sub-band) with VSWR ≤ 2.0 :contentReference[oaicite:1]{index=1}
- Dual slant polarization (±45°) with >30 dB isolation between polarisations :contentReference[oaicite:2]{index=2}
- Front-to-back ratio >40 dB for excellent interference rejection :contentReference[oaicite:3]{index=3}
- Narrow beamwidth: ~3.5° horizontal & vertical for tight directional control :contentReference[oaicite:4]{index=4}
- Supports up to 50 W per port, with DC ground lightning protection, 50 Ω impedance, and 2 × N‑female connectors :contentReference[oaicite:5]{index=5}
- Robust aluminum reflector (~0.9 m dish), weighs ~8–10 kg; operates –40 °C to +70 °C :contentReference[oaicite:6]{index=6}
Specifications at a Glance
| Frequency Range | 4.9–6.5 GHz |
|---|---|
| Gain | 31.5–34 dBi |
| Polarization | Dual Slant (±45°) |
| Beamwidth (H/V) | ~3.5° |
| Isolation | >30 dB |
| Front‑to‑Back Ratio | >40 dB |
| Max Power | 50 W per port |
| Connector | 2 × N‑female |
| Dish Size | ≈ Ø0.9 m, aluminum reflector |
| Weight | ≈ 8–10 kg |
| Operating Temp | –40 °C to +70 °C |
| Lightning Protection | DC Grounded |
