Product Overview

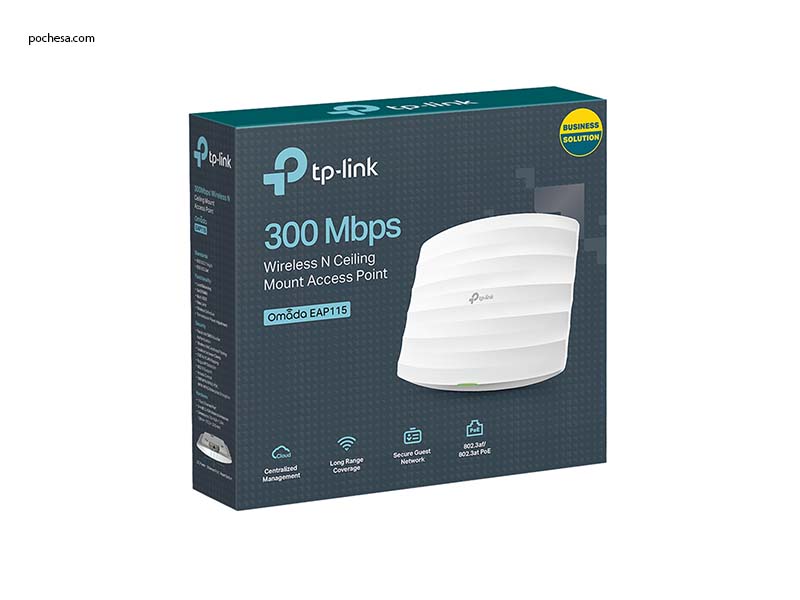

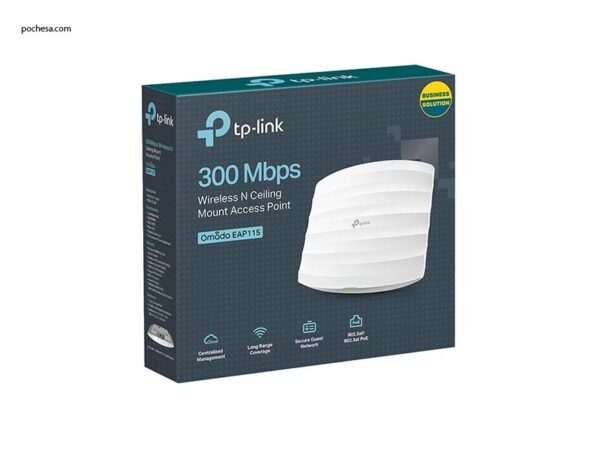

The **TP‑Link EAP115** is a business-class Wireless N access point ideal for hotels, schools, offices, and cafés. It offers up to 300 Mbps on the 2.4 GHz band with dual internal 4 dBi omni antennas. The device supports up to 8 SSIDs, captive portal authentication (SMS/Facebook/Voucher), and is powered by standard 802.3af PoE for easy installation.
Main Features
- 300 Mbps 2.4 GHz Wi‑Fi (802.11n/g/b) with 2×2 MIMO omni antennas → enhanced indoor coverage
- Supports up to 8 SSIDs and 100+ concurrent clients; guest portal with SMS/Facebook/Voucher login
- Ceiling or wall mount design with mounting kit included; minimalistic “flat mushroom” style
- Powered by 802.3af PoE or external 9 V DC power supply; consumes ≈ 2.8 W
- Fully managed via Omada SDN platform—Omada App, hardware controller or cloud-based—ideal for centralized network deployments
Specifications at a Glance
| Wireless Rate | Up to 300 Mbps (2.4 GHz) |
|---|---|
| Antenna | 2× internal omni 4 dBi |
| Ethernet Port | 1× 10/100 Mbps RJ45 (PoE‑in or 9 VDC) |
| Client Capacity | Up to 100+ clients across 8 SSIDs |
| Management | Omada SDN (App, cloud controller, OC200/300) |
| Power Consumption | ≈ 2.8 W |
| Mounting | Ceiling or wall kit included |
| Dimensions | ≈ 189 × 172 × 30 mm |
| Operating Temp | 0 °C to 40 °C |
| Certifications | CE, FCC, RoHS |
