Product Overview

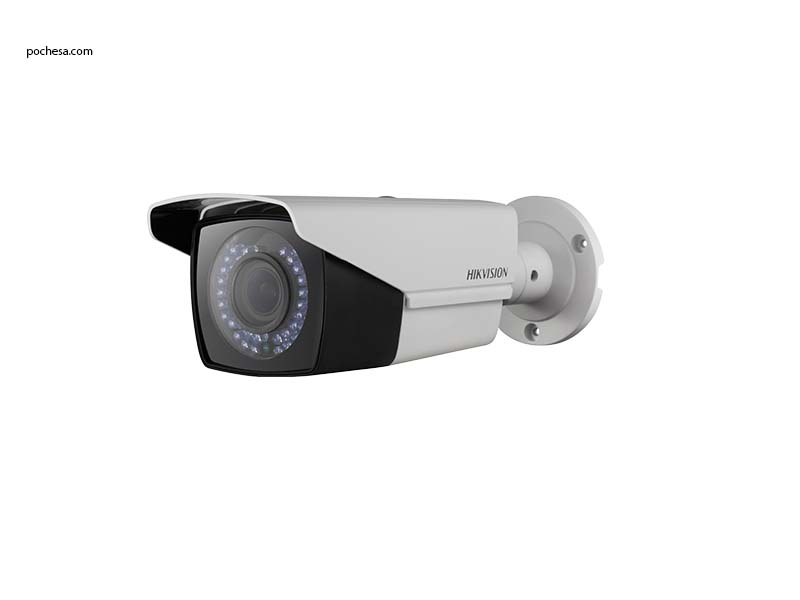

Upgrade your security system with the Hikvision DS‑2CE16D0T‑VFIR3F, a robust 2 MP Turbo HD varifocal bullet camera offering flexible monitoring with a manual 2.8–12 mm lens. It supports HD analog formats (TVI/AHD/CVI/CVBS) and delivers up to 1080p resolution via a single coaxial cable with optional PoC (Power over Coax).
Main Features
- 2 MP CMOS sensor — 1920×1080 at 25/30 fps
- Varifocal 2.8–12 mm lens; horizontal view from ~102° to 32°
- Powerful Smart IR illumination up to 40 m (0 Lux with IR on)
- Excellent >62 dB WDR and 2D-DNR for high contrast scenes
- IP66-rated weatherproof housing for outdoor use
- BC over coax controls via compatible HD-TVI DVRs (HIKVISION-C protocol)
Specifications
| Resolution | 1920 × 1080 @ 25/30 fps |
|---|---|
| Lens | 2.8–12 mm manual varifocal @ F1.4 (Ø14 mount) |
| Field of View | ~102° – 32° |
| Minimum Illumination | 0.01 Lux (F1.2, AGC ON), 0 Lux with IR |
| IR Range | Up to 40 m Smart EXIR LEDs |
| WDR / DNR | >62 dB / 2D-DNR |
| Signal Formats | TVI, AHD, CVI, CVBS (switchable) |
| Power Supply | 12 VDC ±15% (≤ 5 W); PoC optional via DVR |
| Ingress Protection | IP66 (indoor/outdoor use) |
| Operating Conditions | –40 °C to 60 °C, ≤ 90% non-condensing humidity |
| Dimensions / Weight | ≈ 92 × 84.8 × 269.6 mm; ~900 g |
Why Choose DS‑2CE16D0T‑VFIR3F?
- Flexible field-of-view with manual varifocal lens, ideal for indoor or outdoor scenes.
- Reliable long-range night imaging with Smart IR up to 40 m.
- Seamless analog integration via switchable HD formats and optional PoC.
- Designed for harsh environments—IP66-rated, wide operating temperature.
